LDS Vacuum Shopper Custom Nipple Fabricator

Welcome to the LDS Vacuum Shopper Custom Nipple Fabricator!

Here at LDS Vacuum Products we are dedicated to delivering top quality products at competitive prices. We don't understand why vacuum items are so expensive. If we get it discounted, shouldn't you? We take pride in our work. The Custom Nipple Fabricator is designed to streamline the process of finding the right custom nipple for you at the best price.

For additional information regarding the Nipple Fabricator please read over the Overview and Help & Information tabs. Looking for the LDS Vacuum Shopper? The LDS Vacuum Shopper tab can get you where you need to go.

Still have questions? Comments? Concerns? Spot an Error? Please feel free to contact us by email at Webmaster@LDSNippleFabricator.com . Pricing Questions? Do you want a custom nipple using a flange not available on the Custom Nipple Fabricator? Contact Us At Info@LDSVacuum.com or call us at (407) 862-4643 or for callers outside of the United States +1-407-862-4643. We would like to thank you in advance for your business.

Overview


Note

Attention Custom nipples below 40" will ship in 5 working days for quantities up to 5. For quantities greater than 5, delivery will be confirmed at point of order.

For flange sizes, types and orientations not listed in the custom fabricator please contact info@ldsvacuum.com


Attention
ATTENTION
ALL Sales with a FINAL DESTINATION outside the Continental United States, Alaska or Hawaii

• You are REQUIRED to provide LDS with a completed "Due Diligence Checklist" prior to your point of order.
• Disclosure of any product sold to an LDS customer with a final destination outside the Continental United States, Alaska or Hawaii are REQUIRED PRIOR TO LDS ACCEPTING YOUR ORDERS

International Emergency Economic Powers Act (IEEPA) PROHIBITS the export of vacuum technology to certain countries.

First time offenders of non-compliance with US Export Laws can result in personal and company fines of $50,000 and (10) years in Federal prison.

To ensure compliance with US Export Laws, LDS does not conduct any business transactions with anyone appearing on the "DENIED PERSONS LIST" published by the US Department of Commerce, the "DEBARRED PARTIES LIST" published by the Department of the State and the "SPECIALLY DESIGNATED NATIONALS" published by the Department of Treasury, Foreign Assets Control.
Prior to shipping, LDS will REQUIRE customers wishing to export to complete our "Due Diligence Checklist".


Click here to download the Due Diligence Checklist.
LDS has and will continue to comply with all record requests from U.S. Department of Homeland Security Logo US Homeland Security , Federal Bureau of Investigation Logo FBI , U.S. Department of Defense Logo US Department of Defense , Federal Aviation Administration Logo FAA , U.S. Department of Homeland Security - Customs and Border Protection Logo US Customs and Border Patrol , Nuclear Regulatory Commission Logo NRC , etc.






Help & Information

Tolerances

OAL Tolerance
0"-12" OAL ± 0.02"
12"-24" OAL ± 0.03"
24"-72" OAL ± 0.06"
>72" OAL ± 0.13"

Straight Length / Overall Length (OAL)

The OAL of a nipple is dependent on the nipple type.
•Full Nipples are measured from flange face to flange face.
•Half Nipples are measured from flange face to tube end.
•Reducing (Adapter) Nipples are measured from flange face to flange face.
For a visual reference please refer to the chart below:

Full Nipple Half Nipple Reducing (Adapter)
Full Nipple OAL Diagram Half Nipple OAL Diagram Reducing (Adapter) Nipple OAL Diagram
OAL = Dimension A OAL = Dimension A OAL = Dimension A

Maximum Overall Length (OAL)

We can provide you with immediate accurate pricing for any custom nipple up to 96.00" OAL.
•Full Nipples are measured from flange face to flange face.
•Half Nipples are measured from flange face to tube end.
•Reducing (Adapter) Nipples are measured from flange face to flange face.

Minimum Overall Length (OAL)

The tables located in the additional flange information section below show the Minimum Overall Length that we can provide immediate pricing for.
The Minimum Overall Length is set to allow for attaching mounting nuts after welding the nipple to a plate of the same thickness as the tube OD.
We can provide immediate accurate pricing for custom nipples at or above the Minimum Overall Length.
Reducing (Adapter) Nipples Minimum Overall Length is determined by whichever flange has the larger Minimum OAL that will be the Minimum OAL.
Smaller lengths are possible by using bulkhead clamps (NW Nipples) or threaded studs (CF Nipples). Contact Info@LDSVacuum.com for availability.

Tube OD

Tube OD is the Outside Diameter (OD) of the tubing, it is measured in inches.

Flange OD

Flange OD is the Outside Diameter (OD) of the flange, it is measured in inches.

Click for Additional Flange Information

CF

Learn More

More Info on Our Conflat Flanges

ISO

Learn More

More Info on Our ISO Flanges

ISO-B

Learn More

More Info on Our ISO-B Flanges

NW

Learn More

More Info on Our NW Flanges


About Our CF Flange

Conflat (CF) Flange
CF Flange
Information About Our CF Flange
Other Names:
• Conflat Flange
Additional Information:
• 304 Stainless
• High Vacuum and Ultra High Vacuum (UHV) Fittings & Flanges
View on the LDS Vacuum Shopper Website
Conflat (CF) Series Flange Dimensions & Calculator
Conflat (CF) Half (Min OAL) Full (Min OAL) Tube OD Flange OD Bolt Holes
133 1.00" 1.00" 0.75" 1.33" 6
212 1.00" 1.50" 1.00" 2.125" 4
275 1.00" 1.50" 1.50" 2.75" 6
338 1.25" 2.00" 2.00" 3.375" 8
450 1.25" 2.00" 2.50" 4.50" 8
462 1.25" 2.25" 3.00" 4.625" 10
600 1.25" 2.25" 4.00" 6.00" 16
675 1.50" 2.50" 5.00" 6.75" 18
800 1.50" 2.50" 6.00" 8.00" 20
1000 1.50" 2.50" 8.00" 10.00" 24
1200 1.75" 2.75" 10.00" 12.00" 32


About Our ISO Flange

ISO Flange
ISO Flange
Information About Our ISO Flange
Equivalent To:
• ISO-K
• LF (Large Flange)
Additional Information:
• ISO Claw Clamp Style Flanges are sexless, infinitely rotatable, self-centering and available for either internal or butt welding.
• Claw clamp style is the most commonly used ISO style flange.
• Flange interface dimensions are made to ISO standards and are interchangeable with all components made to these standards.
• Every welded assembly is helium leak checked to have a leak rate of less than 1x10-9 standard cc/sec.
View on the LDS Vacuum Shopper Website
ISO / ISO-K Series Flange Dimensions & Calculator
ISO Half (Min OAL) Full (Min OAL) Tube OD Flange OD
ISO63 1.50" 2.75" 2.50" 3.74"
ISO80 1.50" 2.75" 3.00" 4.33"
ISO100 1.50" 2.75" 4.00" 5.12"
ISO160 1.75" 3.00" 6.00" 7.09"
ISO200 1.75" 3.00" 8.00" 9.45"
ISO250 1.75" 3.00" 10.00" 11.42"


About Our ISO-B Flange

ISO-B Flange
ISO-B Flange
Information About Our ISO-B Flange
Equivalent To:
• ISO-F
Additional Information:
• ISO-B Bolted Style Flanges are sexless, self-centering, available for either internal or butt welding, and if bolted to a rotatable bolt ring (which contain an ISO style flange) can be infinitely rotatable.
• Claw clamp style is the most commonly used ISO style flange.
• Flange interface dimensions are made to ISO standards and are interchangeable with all components made to these standards.
• Every welded assembly is helium leak checked to have a leak rate of less than 1x10-9 standard cc/sec.
View on the LDS Vacuum Shopper Website
ISO-B / ISO-F Series Flange Dimensions & Calculator
ISO-B Half (Min OAL) Full (Min OAL) Tube OD Flange OD Bolt Holes
ISO-B63 1.50" 2.75" 2.50" 5.12" 4
ISO-B80 1.50" 2.75" 3.00" 5.71" 8
ISO-B100 1.50" 2.75" 4.00" 6.50" 8
ISO-B160 1.75" 3.00" 6.00" 8.86" 8
ISO-B200 1.75" 3.00" 8.00" 11.22" 12
ISO-B250 1.75" 3.00" 10.00" 13.19" 12


About Our NW Flange

NW Flange
NW Flange
Information About Our NW Flange
Equivalent To:
• KF
• QF
Additional Information:
• Turn NW10 Flanges Into NW16 By Using Adaptive Centering Rings.
• Every welded assembly is helium leak checked to have a leak rate of less than 1x10-9 std. cc/second.
View on the LDS Vacuum Shopper Website
NW/KF/QF Series Flange Dimensions & Calculator
NW Half (Min OAL) Full (Min OAL) Tube OD Flange OD
NW16* 1.00" 1.00" 0.75" 1.18"
NW25 1.00" 1.00" 1.00" 1.57"
NW40 1.00" 1.00" 1.50" 2.18"
NW50 1.00" 1.00" 2.00" 2.95"
* NW16 Centering Ring Counter Bore: 0.68"



Frequently Asked Questions

How many different pricable combinations are there?
There are approximately 34,770,000 different priceable combinations.

The decimal only goes down to 2 decimal places what if I want something more specific like 32/79’s?
Select the Advanced Options dropdown in the length area. Then select Decimal Calculator and type in the numerator and denominator. Click Calculate, then Input and it will input the nearest decimal. Also, make sure that you put the fraction in the Notes section so we can get your length correct.

What are the tolerances?
The chart that has the tolerances is located on the Help & Information . The tolerances are as follows:
OAL To
0"-12" OAL ± 0.02"
12"-24" OAL ± 0.03"
24"-72" OAL ± 0.06"
>72" OAL ± 0.13"


Are custom tolerances available?
Yes, please contact us by phone at (407) 862-4643 or by email at Info@LDSVacuum.com so we can discuss your requirements and provide you accurate pricing and lead times.

Can I use the nipple fabricator during the LDS vacation shutdown?
Yes, the only times that you can’t use the Nipple Fabricator is when it is down for maintenance.

How long does it take to build my custom nipple?
Lead times vary depending on what you are ordering, generally custom nipples below 40" will ship in 5 working days for quantities up to 5. For quantities greater than 5, delivery will be confirmed at point of order. The amount of time spent on the Custom Nipple Fabricator is all dependent on how long you choose to spend on it.

Is my custom nipple price set in stone?
No, we strive to maintain the lowest prices so if our competitors lower their prices we lower ours. Unfortunately, the reverse is true if tariff's or more taxes are implemented that raise our prices, we will do our best to absorb the increase but prices might increase. The price provided is an estimated price and is subject to change at any time.

Is shipping and handling included in the estimated price?
No, since this is just a custom nipple request, the price is just for the nipple itself.

Is my custom nipple polished? What kind of polish is used?
LDS provides OD Polish on custom nipples with a Tube OD of 4” and smaller.

What if the flange type I want is not available on the Nipple Fabricator?
We encourage you to contact us by phone at (407) 862-4643 or by email at Info@LDSVacuum.com and we will assist you from there.

Do I need to complete a Due Diligence Checklist?
If your final destination is outside the Continental United States, Alaska or Hawaii then yes. Puerto Rico and any territory of the United States must fill one out.

Can I return the nipple if I don’t like it?
No, all custom parts are non-returnable and non-refundable due to their custom nature.

Why does it say down for maintenance?
When the Nipple Fabricator is down for maintenance we are usually improving the codes, scripts, user interface or updating prices. We want to make sure that the user experience is fast and fluid.

How long will it be down for maintenance?
We always plan out our updates and improvements to ensure that they are completed quickly and have a minimum impact on a customer’s experience. UI, Coding and Scripting updates take at most 30mins. Updating Prices usually takes 15-30mins per block. A block consists of the minimum OAL to 96” and has approximately 370 parts.

How do I pay for my custom nipple?
Once you submit a request, the information provided will be looked over and one of our sale associates will contact you at the email provided on your request form and continue the process to make sure that you get the correct item.

I get an error message when I try to make a custom nipple, what’s going on?
General errors are assigned error codes (i.e. Error Code 5HLI: Half Nipple Length Contains Invalid Characters) If your error is a general error write down the error code take a screenshot and email he image and a short narrative explaining what you were doing to Webmaster@LDSNippleFabricator.com and we will get back to you as soon as possible. If it is a non-general error in order to diagnose the error, take a screenshot or image and email the image and a short narrative explaining what you were doing to Webmaster@LDSNippleFabricator.com and we will get back to you as soon as possible.

Which of the 2 emails provided on here should I contact?
You should generally email Info@LDSVacuum.com for general inquiries that include pricing, questions and general assistance. You should email Webmaster@LDSNippleFabricator.com for more technical inquiries regarding coding errors, pricing mismatches, data security and privacy concerns and anything involving the coding, scripting and maintenance of the website.
× LDS Vacuum Shopper Logo

Homepage

Go to the Homepage section on the LDS Vacuum Shopper

Contact Us

Go to the Contact Us section on the LDS Vacuum Shopper

Info

Go to the Info section on the LDS Vacuum Shopper

Request Info

Go to the Request Info section on the LDS Vacuum Shopper

Adaptors

Go to the Adaptors section on the LDS Vacuum Shopper

Blanks

Go to the Blanks section on the LDS Vacuum Shopper

Calibration Services

Go to the Calibration Services section on the LDS Vacuum Shopper

Clamps, Gaskets & Rings

Go to the Clamps, Gaskets & Rings section on the LDS Vacuum Shopper

Conflat Flanges

Go to the Conflat Flanges section on the LDS Vacuum Shopper

Crosses / Elbows

Go to the Crosses / Elbows section on the LDS Vacuum Shopper

Feedthroughs

Go to the Feedthroughs section on the LDS Vacuum Shopper

Gauges & Gas Leaks

Go to the Gauges & Gas Leaks section on the LDS Vacuum Shopper

Hose / Tubing

Go to the Hose / Tubing section on the LDS Vacuum Shopper

ISO / LF Components

Go to the ISO / LF Components section on the LDS Vacuum Shopper

Leak Detectors

Go to the Leak Detectors (Parts & Rentals) section on the LDS Vacuum Shopper

NW / KF / QF Components

Go to the NW / KF / QF Components section on the LDS Vacuum Shopper

Oils / Greases / Sealants

Go to the Oils / Greases / Sealants section on the LDS Vacuum Shopper

Pumps & Glove Boxes

Go to the Pumps & Glove Boxes section on the LDS Vacuum Shopper

Services / Systems / Tech Tips

Go to the Services / Systems / Tech Tips section on the LDS Vacuum Shopper

Tees & Traps

Go to the Tees & Traps section on the LDS Vacuum Shopper

Thin Film Supplies

Go to the Thin Film Supplies section on the LDS Vacuum Shopper

University, Non-Profit & Gov't Labs

Go to the University, Non-Profit & Government Labs ONLY section on the LDS Vacuum Shopper

Valves

Go to the Valves section on the LDS Vacuum Shopper

Weldable Bodies

Go to the Weldable Bodies section on the LDS Vacuum Shopper

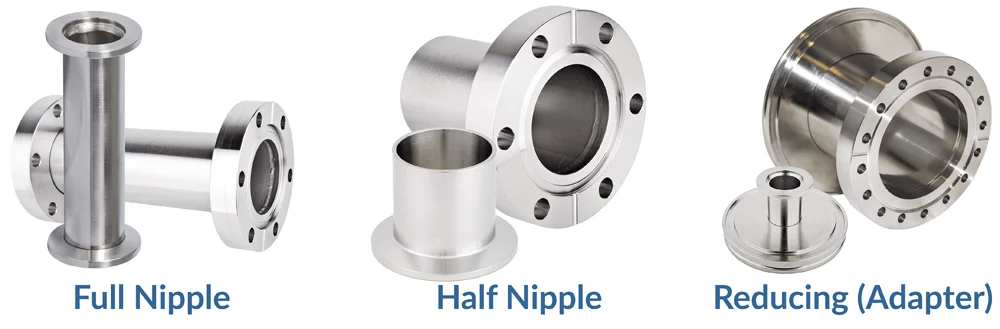

Nipple Type Comparisons
